Product Overview

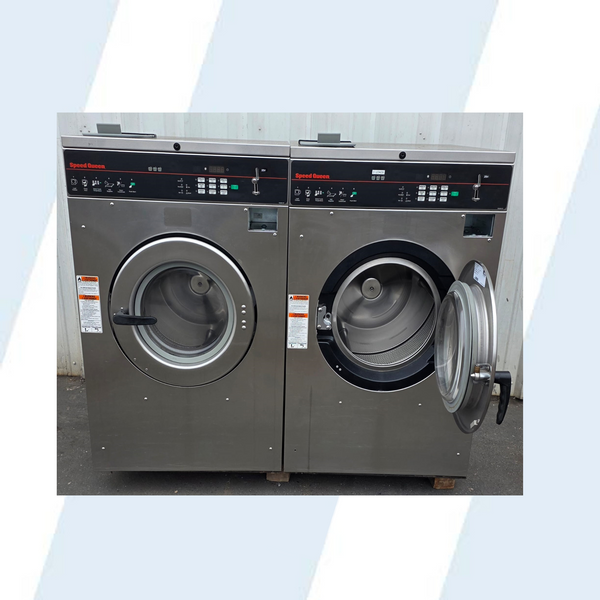

ALLIANCE LAUNDRY SYSTEMS (SPEED QUEEN) MODEL SCN030JC2OU1001 SN:0911020851 30LB HARDMOUNT WASHER-EXTRACTOR [REF]
The Speed Queen SCN030JC20U1001 is a vended, commercial-grade 30 lb capacity hardmount washer-extractor. This heavy-duty model features a rigid-mount chassis designed to handle high continuous spin loads.
Physical Dimensions & Capacity
- Load Capacity: 30 lbs (13.6 kg)
- Cylinder Volume: 4.2 cu ft (118 liters)
- Cylinder Diameter: 24 inches (610 mm)
- Cylinder Depth: 16 inches (406 mm)
- Cabinet Width: 29 inches (737 mm)
- Cabinet Depth: 34.6 to 35.3 inches (878 to 897 mm)
- Cabinet Height: 45 inches (1,143 mm)
- Door Opening Size: 14.3 inches (295 mm)
- Door Bottom to Floor: 14 inches (356 mm)
- Net Weight: Approx. 440 lbs (200 kg)
Electrical & Motor Specifications
- Voltage Input: 220 to 240 Volts
- Phase Configuration: 3-Phase
- Frequency: 60 Hz
- Full Load Amperage (FLA): Approx. 7 Amps
- Recommended Circuit Breaker: 15 Amp
