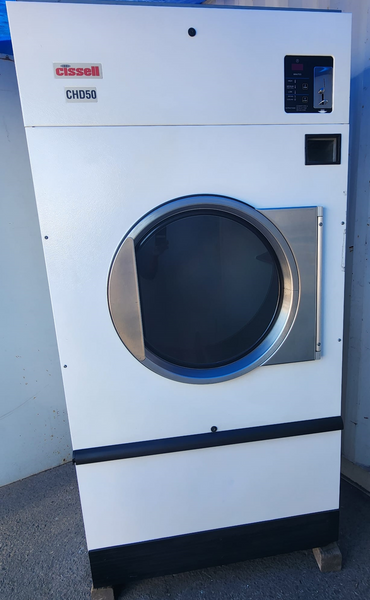

CISSELL COIN OPERATED 50LB GAS DRYER MODEL CT050NDVB1G1W01 SERIAL NO 06080085410[REF]

CISSELL COIN OPERATED 50LB GAS DRYER MODEL CT050NDVB1G1W01 SERIAL NO 06080085410[REF]

Cissell CT050 (50 lb) — Key Specifications

• Dry weight capacity: 50 lb (dry linen).
• Cylinder / Drum: 37 in diameter × 30 in depth → ~18.6 cu ft. Door opening 26.89 in.
• Exhaust / Airflow: ~750 cfm (60 Hz). Exhaust vent diameter: 8 in (≈200 mm).
• Gas heat input (factory setting): ~130,000 Btu/hr (natural gas; alternate listings show some configurations near 104,000 Btu/hr depending on factory setting — check the machine nameplate).
• Gas connection: 1/2" NPT (steam connection 3/4" when used). Recommended gas pressures shown for NG/LP on spec sheet.
• Motors (typical): Cylinder motor 0.50 hp (non-reversing) and fan 0.50 hp; reversing motor options listed at lower hp.
• Electrical requirements (examples from manual): gas/steam models — 120/60/1: 9.3 A (other voltage/phase options also listed in the technical sheet). Always verify nameplate.
• Weights & packing: Net approx. 545–602 lb (depending on motor/configuration); gross / shipping ~580–634 lb (varies by configuration / crate).
• Noise level: ~60 dBA (per tech sheet).
• Temperature range: approx 100.4 °F to 190.4 °F (control/thermostat limits shown in manual).
